Industrial piping rarely stays perfectly still. Heat, pressure, vibration, and connected equipment can introduce movement that slowly puts stress on pipes and joints. So, how can plants manage that movement without compromising reliability? A well-designed lateral expansion joint can provide the flexibility needed to accommodate controlled movement while helping protect the wider piping system.
For demanding applications, choosing the right lateral expansion joint manufacturer in India is about more than purchasing a component. It involves understanding operating temperatures, pressure conditions, movement requirements, materials, installation practices, and the environment in which the joint will work.
Imagine a long metal pipeline running through a process plant. During operation, its temperature may rise significantly. The pipe expands, connected equipment shifts slightly, and vibration can add another layer of movement. If that movement has nowhere to go, stress can build up at critical points.

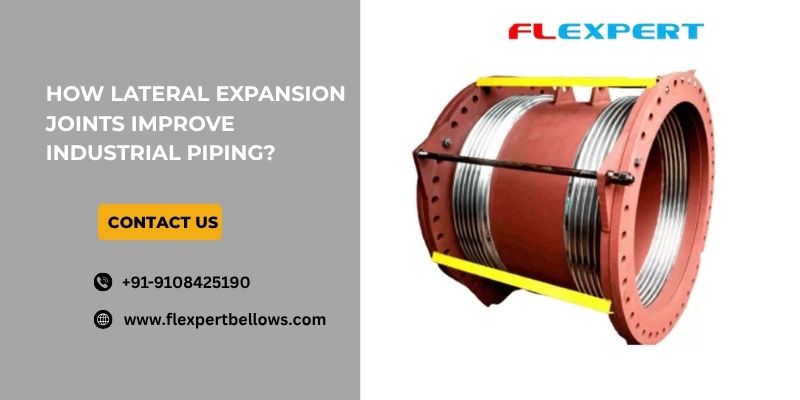

Lateral expansion joints are designed to accommodate movement perpendicular to the pipe axis. In practical terms, they act somewhat like a controlled flexibility zone within an otherwise rigid piping arrangement.
This can be particularly useful in systems exposed to thermal cycling, equipment vibration, structural movement, or piping layouts where conventional expansion methods are difficult to implement.
Modern industrial requirements are rarely one-size-fits-all. A joint used in a hot process line may face very different conditions from one installed in a chemical, power-generation, pharmaceutical, or HVAC application.
The bellows material needs to suit the operating environment. Stainless steel grades are commonly considered where corrosion resistance, temperature capability, and mechanical performance are important. The final selection, however, should be based on the actual medium, temperature, pressure, and service conditions.
Movement should be calculated rather than guessed. A properly engineered joint considers the expected amount and direction of lateral movement, along with the number of operating cycles. This helps avoid selecting a component that is either unnecessarily large or unable to handle the application.
Pressure and temperature directly influence bellows design and overall joint performance. An experienced engineering team will evaluate these conditions together instead of treating them as separate specifications.
Even a technically excellent expansion joint can perform poorly if the surrounding piping is incorrectly supported or the component is installed under unsuitable conditions. Guides, anchors, alignment, and movement direction all deserve attention during installation.
Their role extends across several industrial environments where piping flexibility is essential. Typical applications may include:
The exact configuration depends on the piping geometry and movement expected in service. That is why application-specific engineering is often more valuable than simply choosing a standard catalogue size.
A reliable expansion joint begins with accurate information. Before selecting a component, engineers generally examine details such as operating temperature, design pressure, pipe size, movement direction, connection type, and available installation space.
This is where an experienced lateral expansion bellow manufacturer can add practical value. Instead of treating the bellow as an isolated product, the manufacturer can consider how it will interact with the complete piping system.
For example, excessive lateral movement can affect bellows fatigue life if the component is not appropriately designed. Likewise, poor guiding can transfer unwanted loads to the joint. Good engineering therefore considers the complete movement path, not just the expansion joint itself.
Industrial piping layouts often have their own quirks. One system may have restricted installation space, while another may experience unusual vibration or repeated temperature changes. A customized expansion joint can be engineered around these real-world conditions rather than forcing the application into a generic design.
Flexpert Bellows focuses on industrial bellows and expansion-joint solutions where design details matter. For engineers and procurement teams, discussing the actual operating conditions with the manufacturer early in the project can make specification and installation considerably smoother.
The basic principle is straightforward: the flexible bellows section deforms in a controlled manner to absorb specified movement while the connected piping remains supported. However, the engineering behind that simple action is considerably more involved.
To explore the mechanism in greater detail, read How Does the Lateral Movement Compensator Joint Work in an Industrial Piping System?. Understanding the movement path can help engineers make more informed decisions about joint selection and system layout.
In the field, many expansion-joint problems are not necessarily caused by the bellows itself. The surrounding system can be just as important.
A little engineering attention at the specification stage can prevent expensive adjustments later. That is particularly relevant for large industrial installations, where replacing a difficult-to-access component can involve substantial downtime and labour.
A lateral expansion joint is a flexible piping component designed to accommodate movement occurring perpendicular to the pipe’s longitudinal axis. It helps manage controlled movement caused by thermal and mechanical conditions.
They can be used in industrial piping, power, chemical, petrochemical, HVAC, and process applications where lateral movement, vibration, or thermal changes need to be accommodated.
Selection should consider pipe size, pressure, temperature, movement, process medium, materials, connection details, operating cycles, and installation conditions. Manufacturer engineering support can help match these requirements with a suitable design.
Guides and anchors help control the direction in which piping moves. Properly designed supports allow the expansion joint to perform within its intended movement range and help prevent unwanted loads on the component.
A lateral expansion joint may be a relatively small part of an industrial piping system, but its job is anything but insignificant. When movement is properly calculated and the joint is correctly specified, installed, and supported, it can become an important part of a dependable piping design. For demanding applications, working with an experienced manufacturer such as Flexpert Bellows can help turn movement management from a recurring concern into a planned engineering solution.
